28 INCH SEAMLESS PE elbow

Basic Info

Model No.: HZ-E-ELBOW

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 90 Degree

Wall Thickness: Sch40

Material: Carbon Steel, A234wpb

Technics: Forged

Size: 4inch

Thickness: Sch40

Standard: ASME B16.9

Surface: Blacking Painting

Package: Wooden Case

End Type: Beveled Ends

Additional Info

Packaging: Wooden Cases or Pallets

Productivity: 1000 Pieces per Week

Brand: HZ

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 2000 Metric Ton per Month

Certificate: ISO 9001

HS Code: 73079900

Port: Tianjin Port,Tianjin Xingang Port

Product Description

Name:28 inch Short Radius Elbow

Short Radius Elbow Dimensions per ANSI/ASME B16.9.
A 90° elbow long tangent is a long radius (LR) with the centerline curvature equal to 1-1/2 times the nominal pipe size (NPS) and a straight extension at both ends (long tangent) for 2 inch and larger sizes.

Short Radius Elbow SIZE:1/2"-72"
RANGE OF APPLICATION:such as oil, chemical industry, water conservancy, electric power, boiler, machinery,                                                 metallurgy, sanitary construction etc.
Long Radius Elbow PAINTING:Anti-rust oil, rust-proof black oil, hot galvanized or as customer`s requirements
CERTIFICATES:ISO9001 : ISO2000-Quality-Systerm has been passed

Production process of Long Radius Elbow

Picture of Long Radius Elbow

Production process

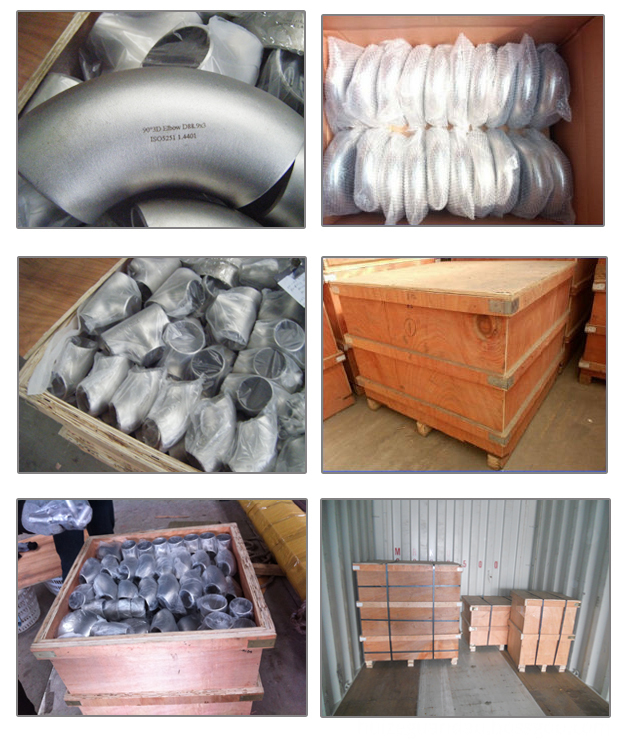

Package and shipping of Long Radius Elbow

Certificate
