Steel pipe fitting barred tee

Payment Type:	L/C,T/T,Paypal,Western Union
Incoterm:	FOB,CFR,CIF,FCA
Min. Order:	10 Piece/Pieces
Delivery Time:	30 Days

Contact Now

Basic Info

Model No.: HZ-B-Tee

Sample: Free

Type: Seamless, Welded

Brand: HZ

Material: Carbon Steel, Stainless Steel, Alloy Steel

Size: 1/2-72 Inch

Wall Thickness: SCH10-SCH160, XS, XXS, STD

Usage: Connection With Pipe

Name: Steel Pipe Fitting Barred Tee

Standard: ASME B 16.9 /ANSI B 16.9

Surface: Black, PE Coated, Glavanized

Additional Info

Packaging: Wooden Cases or Pallets

Productivity: 1000 Pieces per Week

Brand: HZ

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 2000 Metric Ton per Month

Certificate: ISO 9001

Product Description

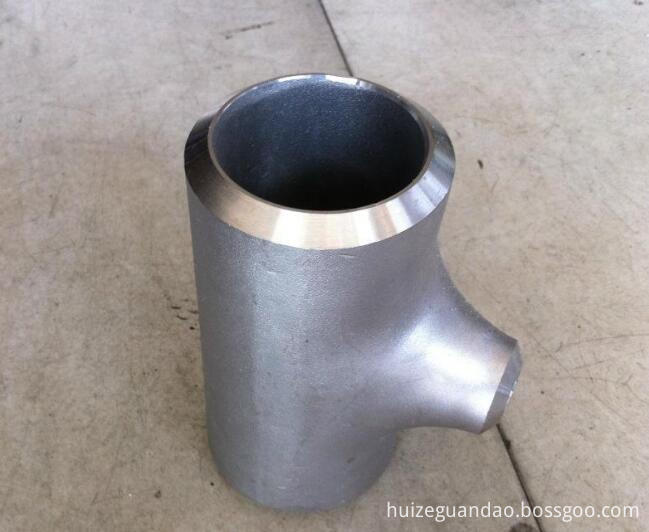

Steel pipe fitting barred tee

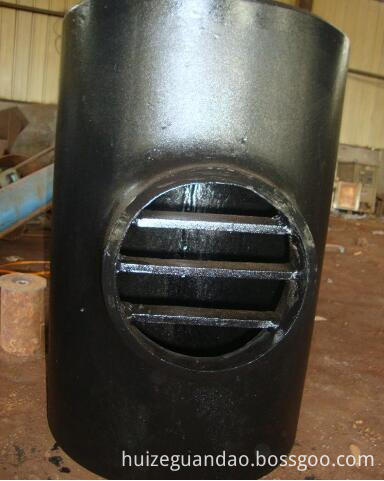

A reduce barred tee is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traceling down a branch connection .The bars are installed so they are flush with the inside diameter of the pipeline to keep the pig from hanging up whtn it passes through .The bars should be of a similar or identical material as the parent material .

Bars are placed on the internal side of a tee or really any branch connection big enough to sidetrack a pig while traveling down a pipline .The size of the bars on the tee should be small enough so that they do not restrict the flow rate through the btanch connection of the tee .

Asme b16.9 barred tee dimensions from DN15 to DN1200 ,we can meet our customers accoeding to they requirement .Y barred tee carbon steel pipe is also popular in our company .

asme b16.9 barred tee dimensions
