mss sp 43 standard short stub end dimensions

Basic Info

Model No.: HZ-A-SE171110004

Product Name: Mss Sp 43 Standard Short Stub End Dimensions

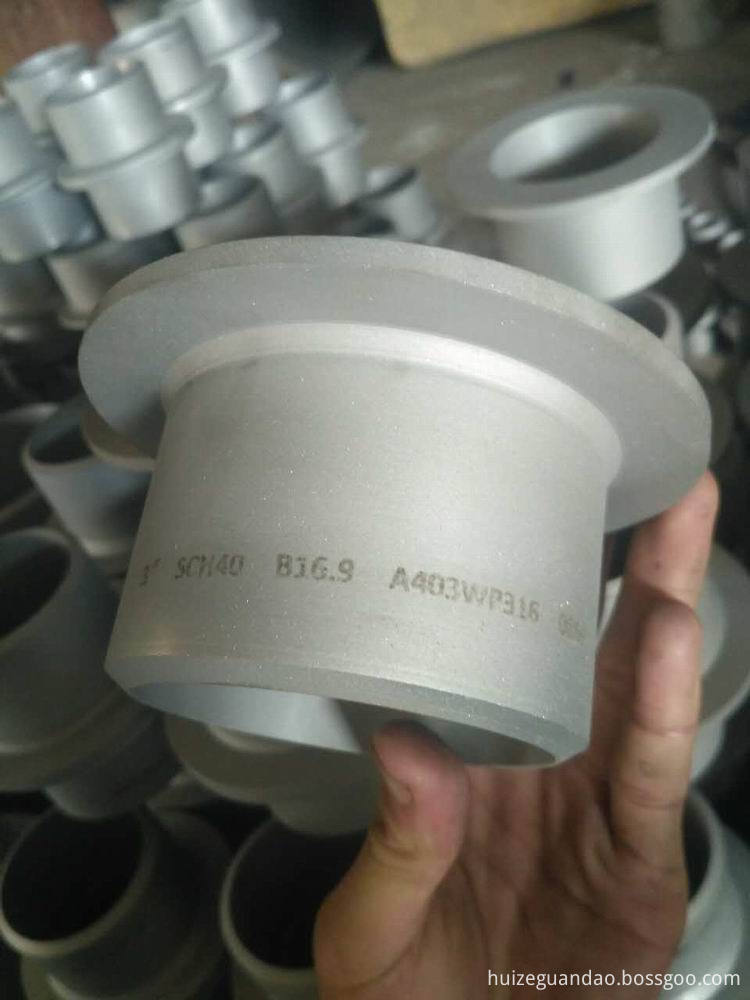

Standard: ASME B16.9&MSSS SP43

Material: A234WPB,A403WP304/316L

Size: 1/2"-24"

Schedule: SCH 10S-XXS

MOQ: 10 PCS

Origin: China

Packaging: In Plywood Cases Or Pallets

Application: Petroleum,Industry,Oil Gas Pipeline

Surface Treatment: Black Painted,Galv.sand Blasting

Additional Info

Packaging: in plywood cases or pallets

Productivity: 300 pcs

Brand: HZ

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 300 PCS/MONTH

Certificate: ISO,CE

HS Code: 73079300

Port: Xingang,China

Product Description

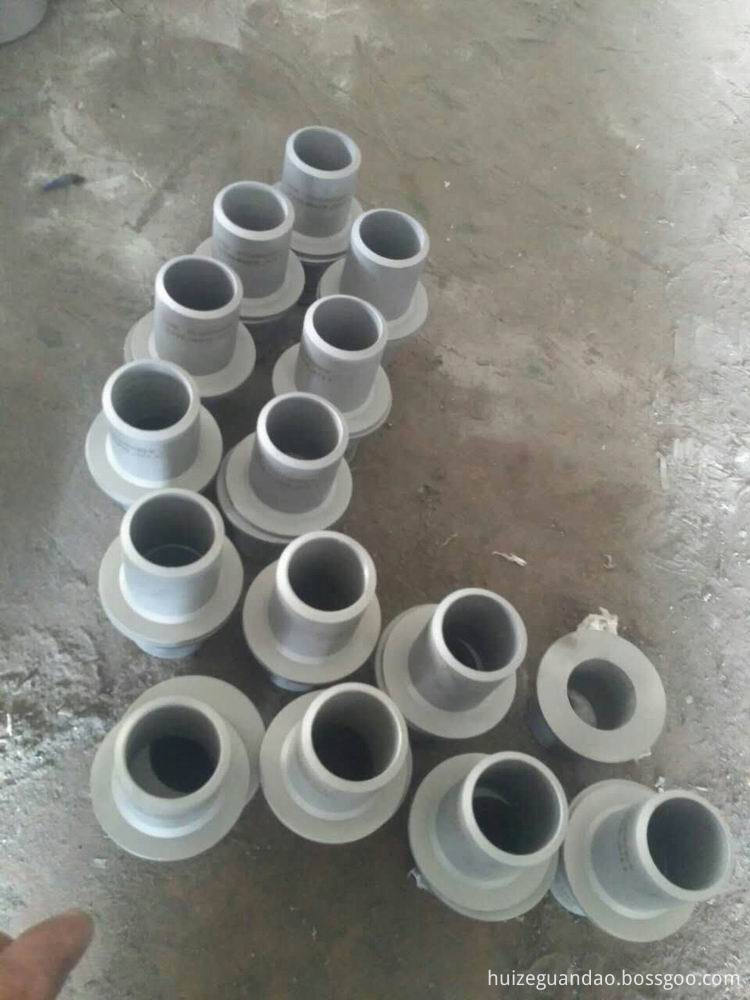

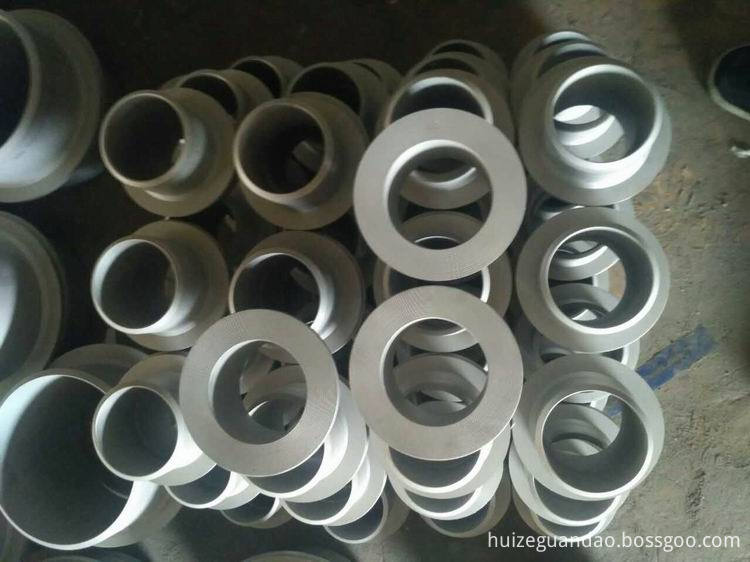

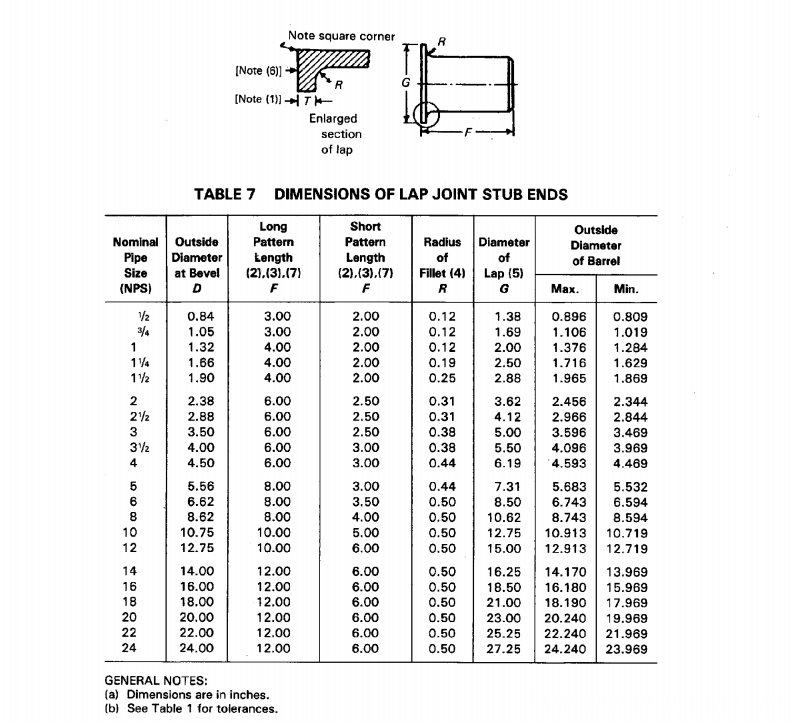

mss sp 43 standard short stub end dimensions

Type A – Type [A" Stub Ends MSS SP43 are for use with standard Lap Joint Flanges. The Lap thickness on the Stub End is greater than, or equal to, the nominal thickness of the pipe wall. Also, type "A" has its outside corner radius to receive Lap Joint Flanges. The inside corner is square. The Lap generally has a machined serrated face.
Type B – Type [B" Stub Ends are for use with standard Slip-On Flanges acting as Lap Joint Flanges. The Lap thickness on these Stub Ends is greater than, or equal to, the nominal thickness of the pipe wall. Also, Type "B" has an outside corner radius small enough to receive Slip-On Flanges that are being used as the Backup Flange. The inside corner is square. The Lap generally has a machined serrated face.
Type C – Type [C" Stub Ends are for use with standard Lap Joint Flanges and Slip on Flanges. The Lap of a Type "C" is flared leaving a rounded edge at the I.D. of the Lap. If required this radius can be made nearly square. The Lap thickness is 75% of the pipe wall. The Type "C" has a very short outside radius small enough to receive any back up flange. The Lap face on a Type "C" is not machined and is smooth.
